Engineered for
Safety.
Built For
Performance.
At Bravioreal, we combine premium materials, advanced technology and strict quality standards to deliver ball valves that ensure safety, reliability and long-lasting performance in every application.

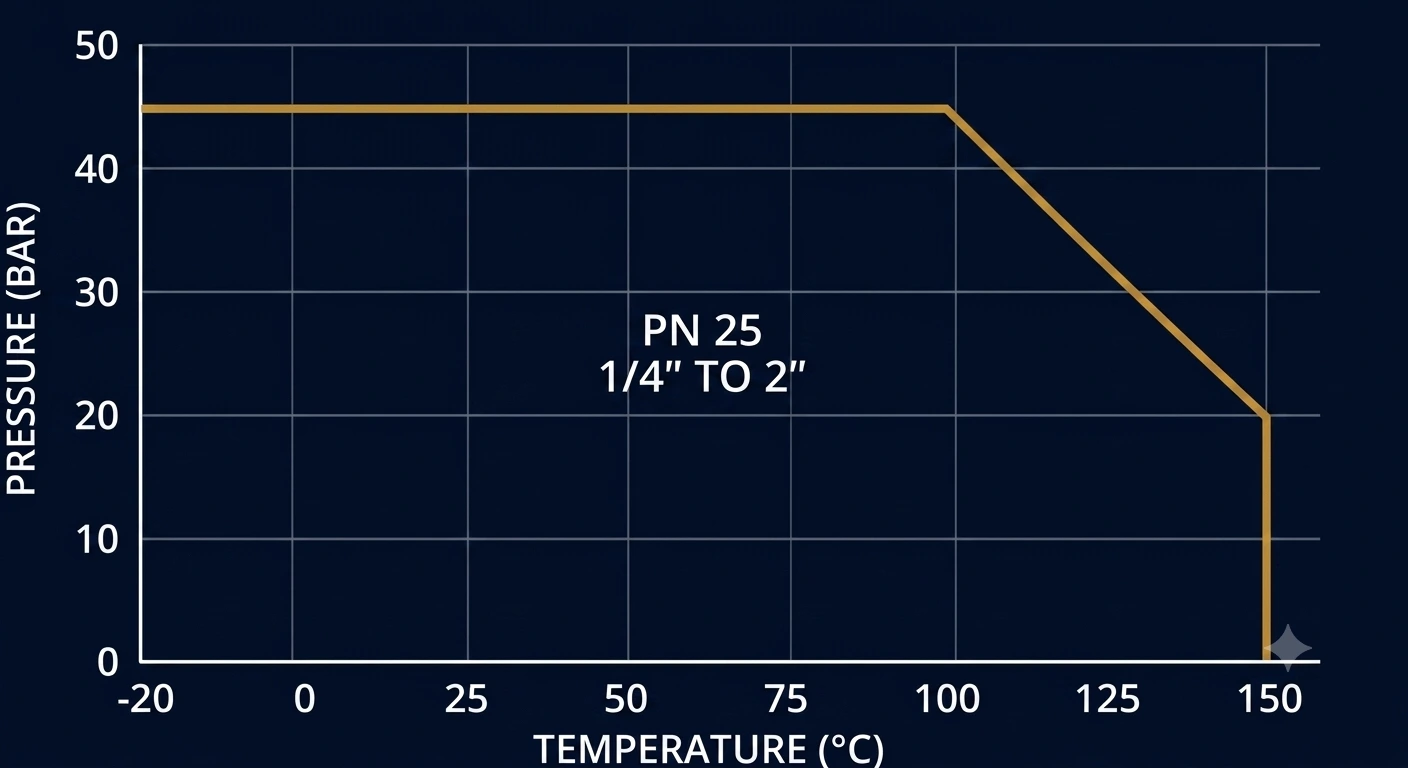

Pressure - Temperature Rating
*Pressure – Temperature rating are in accordance with standard testing conditions.
Pressure - Temperature Rating
100% Leak Proof
Every valve is tested for maximum safety.
Corrosion Resistant
High quality brass body with nickel plated finish.
Smooth Operation
Precision engineering for effortless operation.
Long Service Life
Built to perform in the toughest conditions for years.
Maintenance Free
Reliable performance with minima maintenance.
Design Feature
01. Strong Brass Body
High-strength forged brass body for maximum durability.
02. Blow-out proof stem
Enhances corrosion resistance and long-lasting shine.
03. Nickel Plated Finish
Ensures safe operation and prevents stem blow-out.
04. Ergonomic Handle
Comfortable grip for easy operation.
05. Ptfe Seats
Pure PTFE seats ensure zero leakage and smooth performance.
06.Precision Ball
Mirror-finished brass bail for smooth flow and long service life.
Wide Range of Applications
Plumbing Systems
Water Supply Systems
Hvac Systems
Oil & Gas Industry
Chemical Industry
Fire Protection Systems
Industrial Plants
Marine & Ship Building
Available sizes
1/4″
3/8″
1/2″
3/4″
1″
1-1/4″
1-1/2″
2″
Connection Type
Bsp Female(Threaded)
Quality & Testing Standards
| 📐 Design Standard | BS EN 13828 |
| 🔗 Connection Standard | BS 21 (BSP Thread) |
| ⏱️ Testing Standard | BS EN 12266-1 |
| 🎯 Working Pressure | PN 25 |
| 🌡️ Temperature Range | -20°C to 120°C |
| 🔄 Operation | Quarter Turn (90°) |
| 📦 Leakage Test | 100% Leak Tested |
| 🧱 Body Material | Brass (Forged) |
| ✨ Finish | Nickel Plated |
100% Test for Your Safety
Pressure test
Each valve is tested under hydrostatic pressure to ensure strength and durability.
Leakage test
100% leak tested to ensure zero leakage and maximum safety.
Dimensional Test
Precisely checked for dimensions to ensure perfect fit and interchangeability.
Surface finish test
Every valve is inspected for smooth surface finish and plating quality.
Packaging & dispatch
- Each valve is individually packed.
- Strong corrugated boxes for maximum protection.
- Safe and secure packaging for export.
- Timely dispatch ensuring on-time delivery.
100% leak tested
Every valve is tested to ensure zero leakage and maximum safety.
Pressure rating
Tested to withstand high pressure and heavy-duty usage.
Corrosion Resistant
Premium brass ensures excellent resistance against rust and harsh environments.
Material Testing
Raw materials are strictly tested for chemical composition and mechanical strength.
Surface finish check
Every valve is inspected for flawless finish. plating quality and surface smoothness.

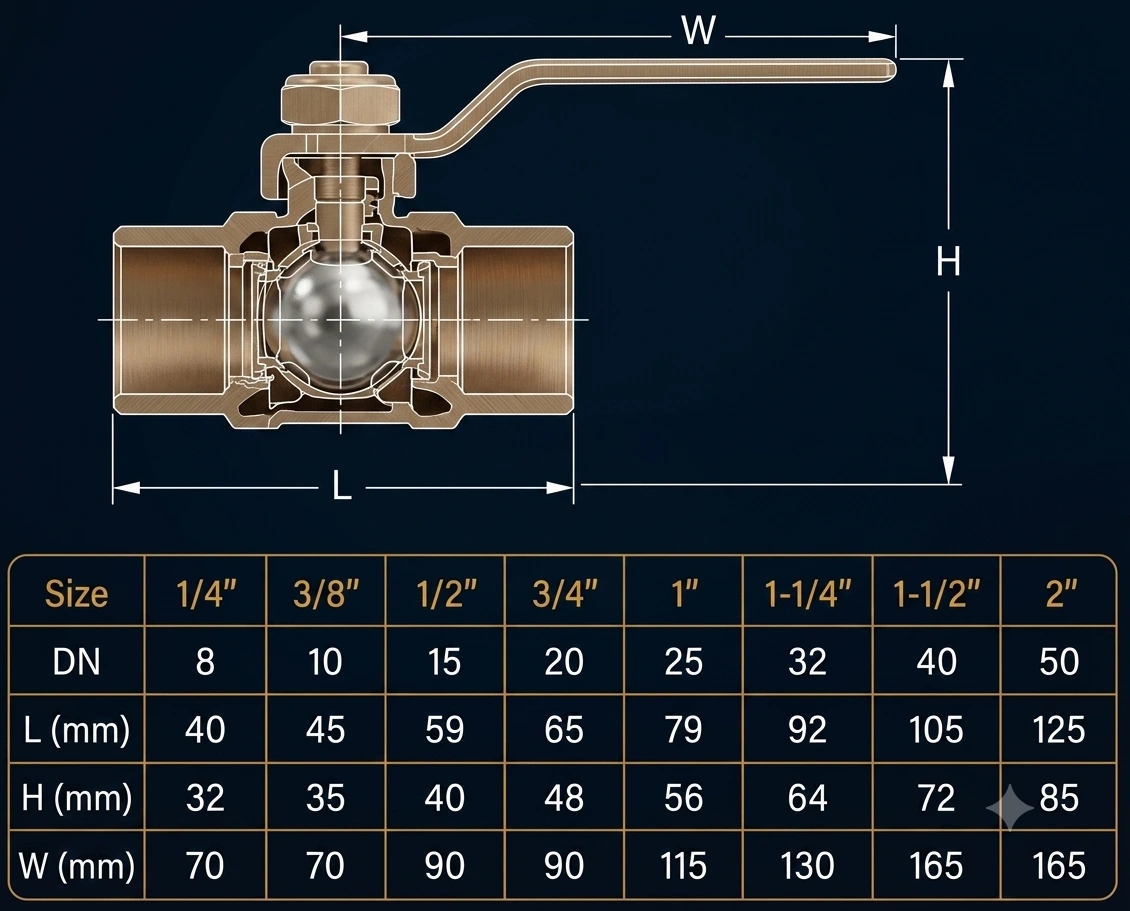

Quality & Testing Standards
*Dimensions are approximate and subjected to change without prior notice.
Certification & Standards
ISO 9001:2015
Quality Management System
CE Marked
Quality Management System
RoHS Compliant
Environmentally friendly and safe materials
REACH Compliant
Meets global chemical safety regulations
BS EN Standards
Manufactured in accordance with British Standards
Our Commitment
We are ISO 9001:2015 Certified, committed to providing consistent quality, superior performance and compete customer satisfaction.
Consistent Quality
Reliable Products
Customer Satisfaction
Continuous Improvement
Global Presence
Proudly serving customers in over 50+ countries worldwide.
